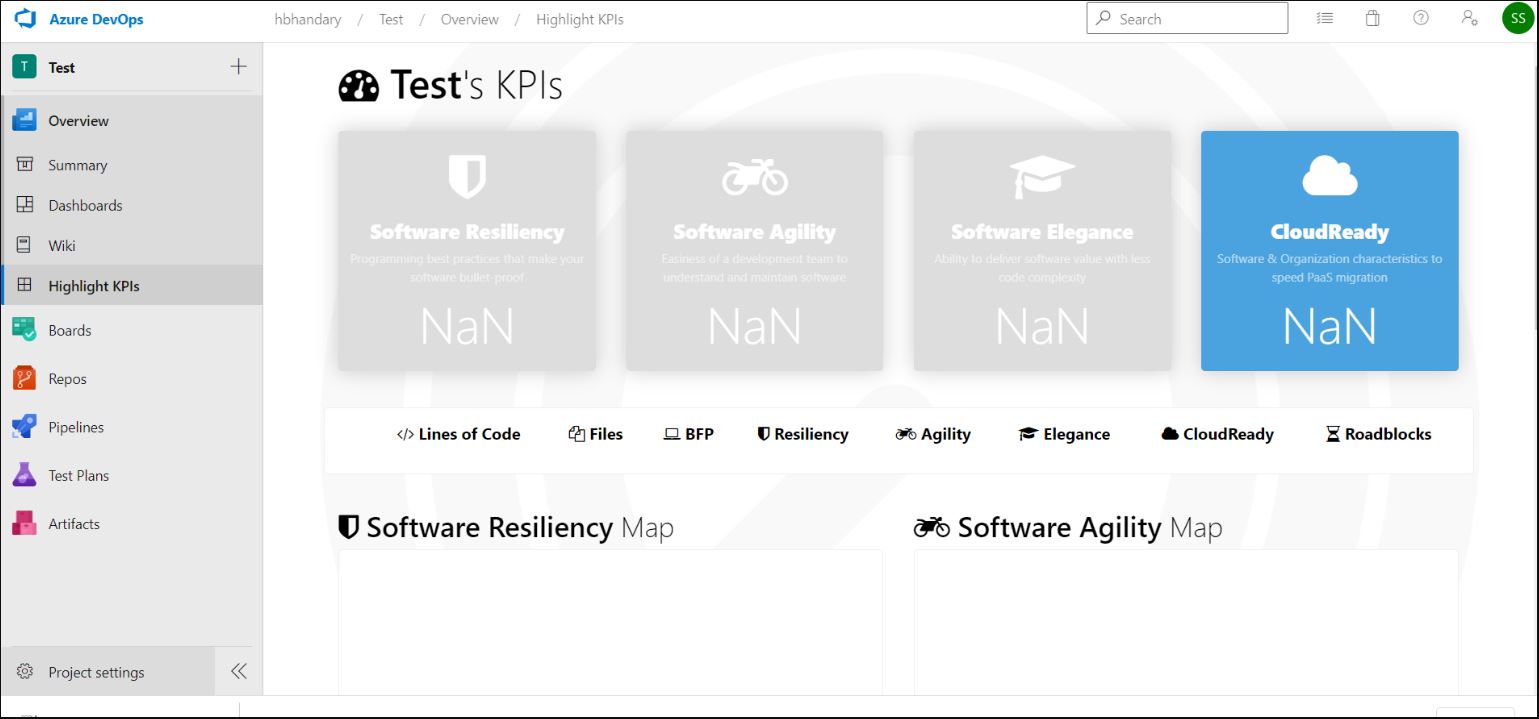

CAST Highlight KPI reports are not seen in AzureDevOps Dashboards Widget, when running scan using Azure DevOps extensions.

The scan result can be uploaded to Highlight with the extension Highlight Automated Code Scan, but to get the Highlight KPI's updated when the application variables are defined in your build variables then the extension Highlight Software Analytics should be installed in your Azure environment. Please note that Highlight Automated Code Scan extension configures and automates the code scan of a project and publish the results on Highlight dashboards, through the Azure DevOps custom agent while Highlight Software Analytics extension consolidates and displays metrics of your scanned projects as tiles and out-of-the-box dashboard in Azure DevOps, through the Highlight API. Please refer How to install, configure and use CAST Highlight extensions for Azure DevOps
Check whether application variables are defined in the build variables. This is required to show results in the dashboard extensions.
Check whether the Highlight CLI is installed on the base machine and accessible to the client agent for the Highlight Azure agent to work properly.
Check whether the configurations are proper. To know more about the pre-requisites, configuration etc please refer How to install, configure and use CAST Highlight extensions for Azure DevOps
