SQL query property is missing from certain imaging links

Reason

The root cause is the link type though both links are CreatedBy: "EscalateMethodToClassLinks".
The main difference is whether the link already existed when the analyzer processed it.

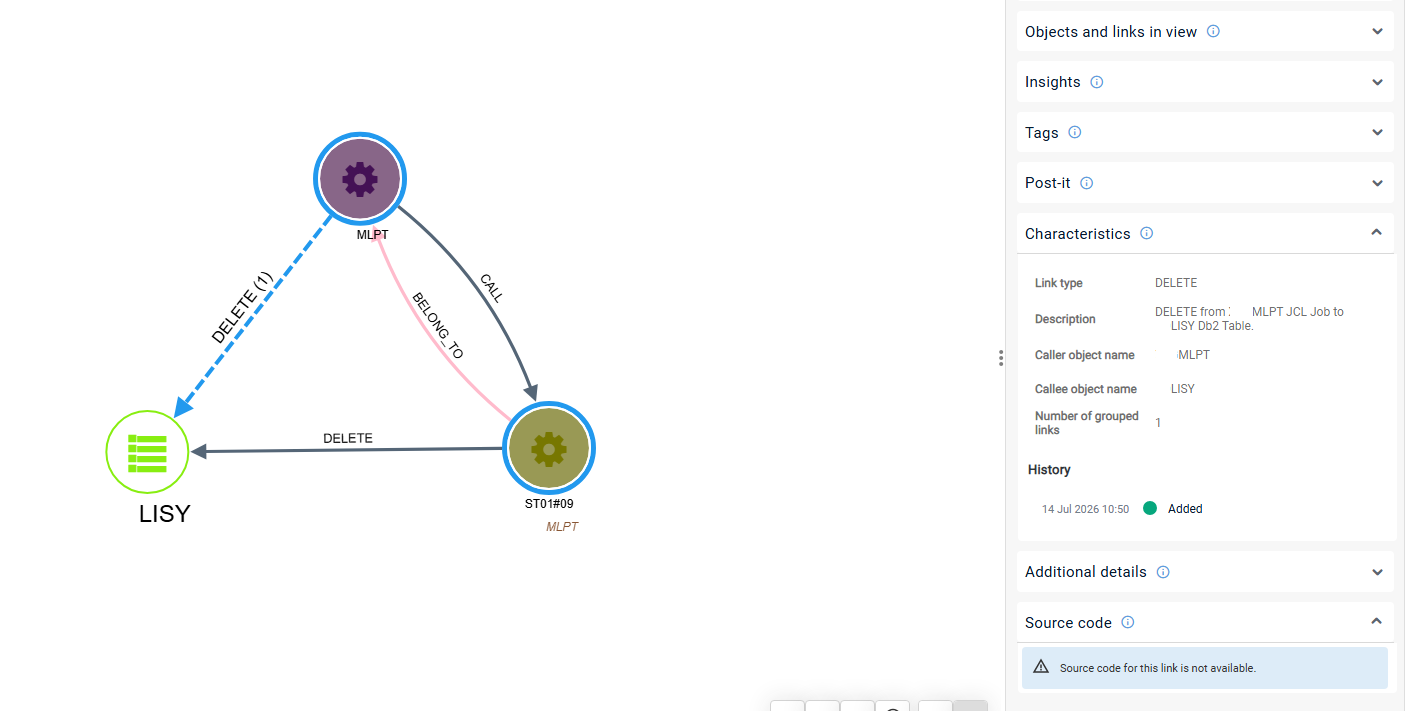

Direct/plain links include the SQLQuery property (SqlQuery), which is displayed in the Characteristics panel.
The link already existed, and the analyzer processed it and populated the SQLQuery property.

Escalated links (IsEscalated: true) created during import do not contain the SQLQuery property. The link was created during the import process as a result of escalation and does not contain the SQLQuery property. However, the SQL can still be accessed by drilling down into the link.

Please also refer Understanding Links

If the information or solution you need is not available on this page, contact CAST Technical Support for assistance.
