CAST HIGHLIGHT - Keyword Scan - Schemas validity error : Element 'filename': This element is not expected. Expected is one of ( content, regexContent )

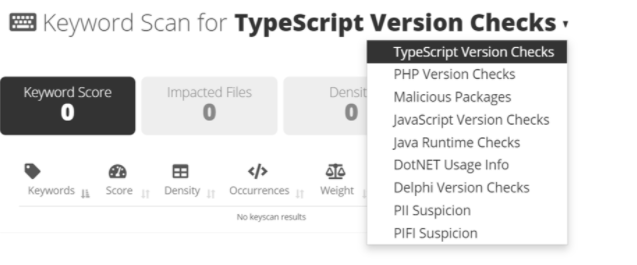

After analyzing customized Keyword scan (keywordscan.xml) setup, patterns (here, Angular) are not showing up in the dropdown as shown below.

Details

The below error was found in the log-

INFO  perl: out: [KeywordScan] ERROR XML: file:/D:/CASTHLKeywordscan/KeywordScan.xml:0: Schemas validity error : Element 'filename': This element is not expected. Expected is one of ( content, regexContent ).
INFO  perl: out: file:/D:/CASTHLKeywordscan/KeywordScan.xml:0: Schemas validity error : Element 'filename': This element is not expected. Expected is one of ( content, regexContent ).
INFO  perl: out: file:/D:/CASTHLKeywordscan/KeywordScan.xml:0: Schemas validity error : Element 'filename': This element is not expected. Expected is one of ( content, regexContent ).

Workaround

The KeywordScan.xml provided by the user was not correct in certain areas.

1. There should not be multiple filenames for a given search id. Please limit it to a single filename for a single search.
2. There are some <> characters in <content> that are interpreted as being a tag. These should be replaced with &lt; and &gt; respectively.

   Please find the below.

   Example for Incorrect Syntax
        <search id="net2">
       <filename>*.csproj</filename>
       <filename>*.vbproj</filename>
       <content><TargetFrameworkVersion>v2.0</TargetFrameworkVersion></content>
        </search>

   Example fixed


   <search id="net2">
   <filename>*.csproj</filename>
   <content>&lt;TargetFrameworkVersion&gt;v2.0&lt;/TargetFrameworkVersion&gt</content>
   </search>

3. Re-launch the scan once the changes are made and validated.
4. You will see the patterns appear in the dropdown.
